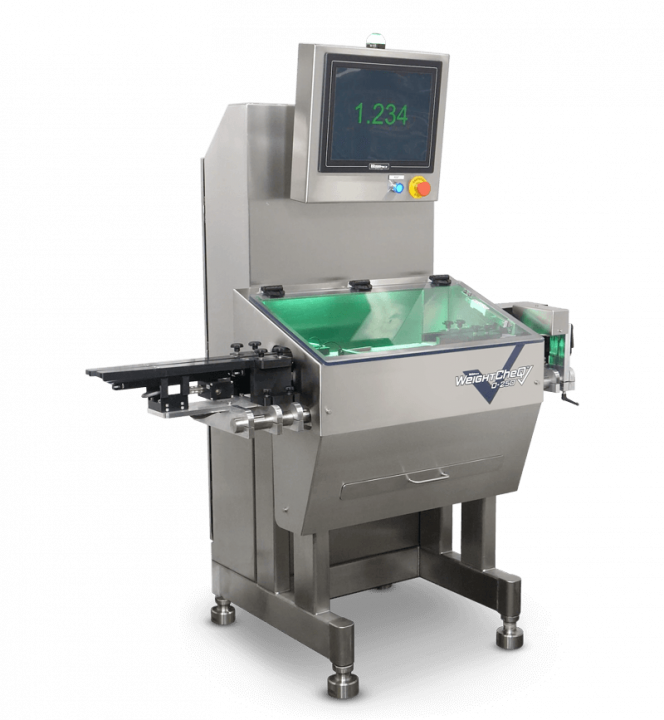

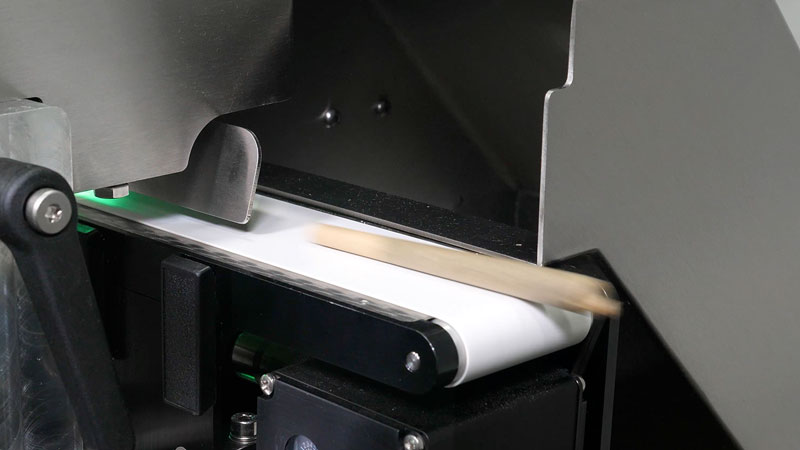

DeutschWeightCheQ 0-250
High Accuracy Check Weighing
The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 0 – 250 |
| Best accuracy (g) | ±0.01 |
Features
• Electromagnetic force restoration (EMFR) weigh cell
• Complete stainless steel/aluminum construction
• Heavy-duty frame structure
• Heavy-duty CNC machined foot pads
• High precision load cell
• Modular frame design
• Product accumulation drawer
• Food grade belts
• Anti-static Lexan safety guard
• Rejection system
• No changeover parts required
• Multi-color warning light with buzzer
• No compressed air required
What is EMFR?
Electromagnetic force restoration (EMFR) combines electrical and mechanical components. The design of EMFR weigh cells is based on a balance mechanism. It consists of a position indicator, a controller and an electro-magnetic drive (coil and permanent magnet). In its functionality, the Weigh Cell can be compared to a simple beam balance. If a weight is placed on one side of the beam, the opposite side of the weighing beam attempts to move out of the magnet’s magnetic field. The position indicator detects this deviation and the amount of current required for balancing the beam and ensuring that no position change can occur is transmitted through the coil. As the current is proportional to the weight and can be measured via a resistor, it can be converted into a digital signal which is used for further processing.
Our WeightCheq 0-250 is suited for all industries as your go to high accuracy check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
- Specifications
Parts Description Material of Frame 304 Stainless steel Weighing range (g) 0 – 250 Best accuracy (g) ±0.01 Features
• Electromagnetic force restoration (EMFR) weigh cell
• Complete stainless steel/aluminum construction
• Heavy-duty frame structure
• Heavy-duty CNC machined foot pads
• High precision load cell
• Modular frame design
• Product accumulation drawer
• Food grade belts
• Anti-static Lexan safety guard
• Rejection system
• No changeover parts required
• Multi-color warning light with buzzer
• No compressed air requiredWhat is EMFR?
Electromagnetic force restoration (EMFR) combines electrical and mechanical components. The design of EMFR weigh cells is based on a balance mechanism. It consists of a position indicator, a controller and an electro-magnetic drive (coil and permanent magnet). In its functionality, the Weigh Cell can be compared to a simple beam balance. If a weight is placed on one side of the beam, the opposite side of the weighing beam attempts to move out of the magnet’s magnetic field. The position indicator detects this deviation and the amount of current required for balancing the beam and ensuring that no position change can occur is transmitted through the coil. As the current is proportional to the weight and can be measured via a resistor, it can be converted into a digital signal which is used for further processing.
- Ideal Markets
Our WeightCheq 0-250 is suited for all industries as your go to high accuracy check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
We’re here to help
Want to see your product run on this machine?

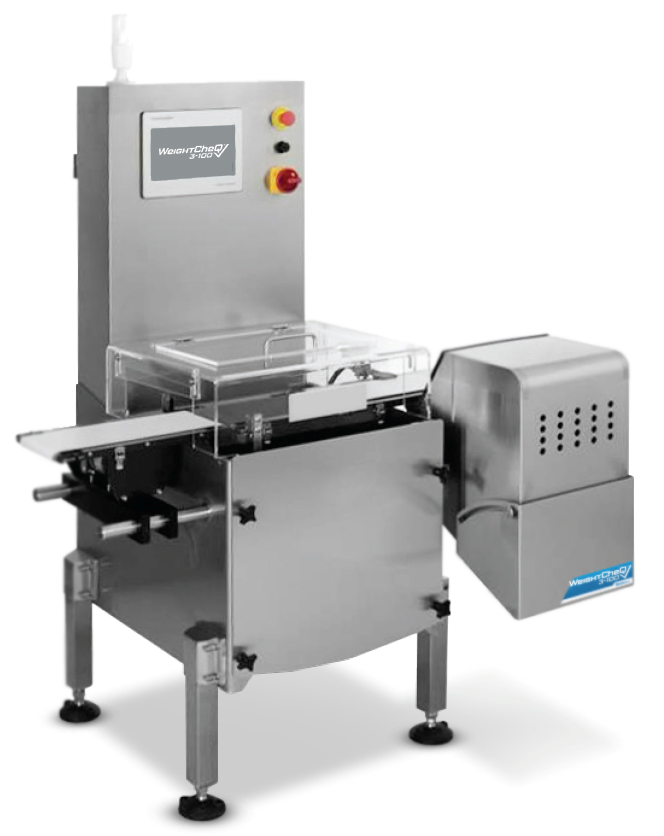

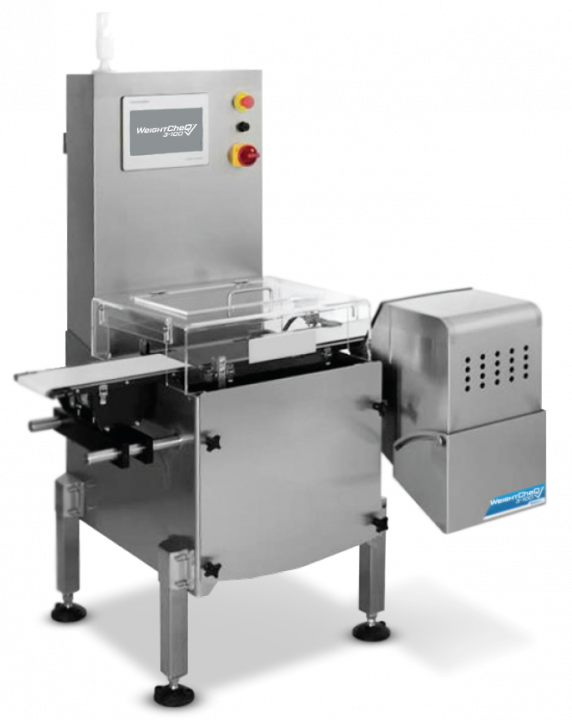

WeightCheQ 3-100
Automatic Check Weighing
The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch• With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 3 – 100 |
| Minimum scale (g) | 0.1 |
| Best accuracy (g) | ±0.2 |
| Max throughput (pcs/min) | 150 |
| Width of weighing belt (mm) | 220 |
| Length of weighing belt (mm) | 450 |
| Height of conveyor belt (mm) | 780-900 |
| Direction of throughput | From left to right when facing control panel |
| Alarm mode | Audible and visual |
| Reject device | Default: Air pusher Option: Flipper |
| Power | 240V 1 Phase |
| Working environments | Free of obvious vibration and air flow |
Our WeightCheq 3-100 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
- Specifications
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch• With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
Parts Description Material of Frame 304 Stainless steel Weighing range (g) 3 – 100 Minimum scale (g) 0.1 Best accuracy (g) ±0.2 Max throughput (pcs/min) 150 Width of weighing belt (mm) 220 Length of weighing belt (mm) 450 Height of conveyor belt (mm) 780-900 Direction of throughput From left to right when facing control panel Alarm mode Audible and visual Reject device Default: Air pusher
Option: FlipperPower 240V 1 Phase Working environments Free of obvious vibration and air flow - Ideal Markets
Our WeightCheq 3-100 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
We’re here to help
Want to see your product run on this machine?

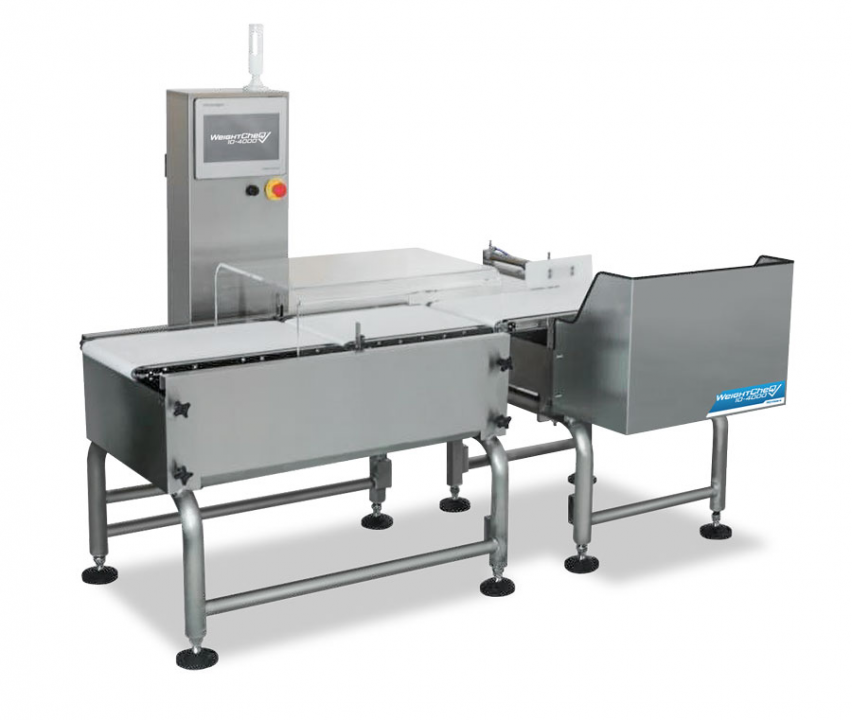

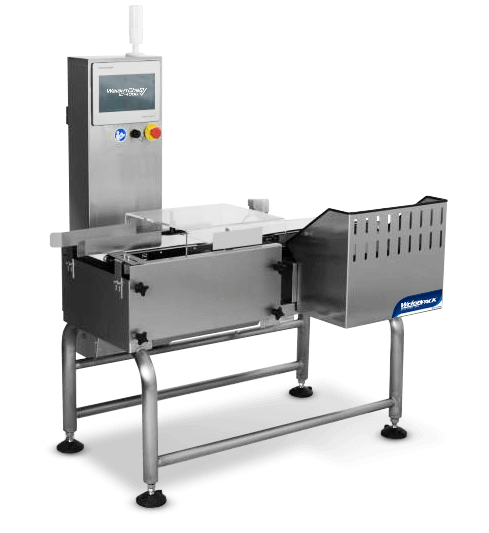

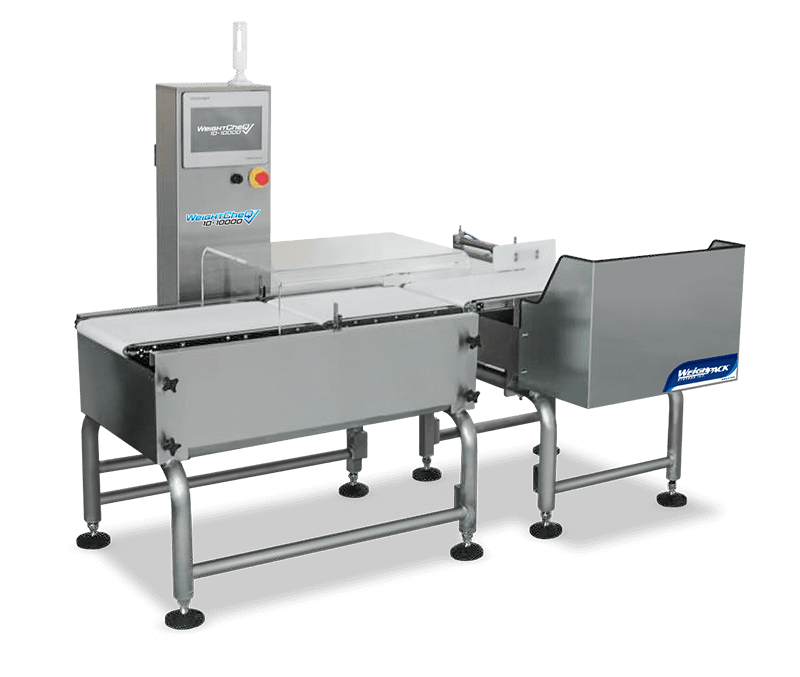

WeightCheQ 10-4000
Automatic Check Weighing
The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch
- With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 10 – 4000 |
| Minimum scale (g) | 0.1 |
| Best accuracy (g) | ±1 |
| Max throughput (pcs/min) | 90 |
| Width of weighing belt (mm) | 300 |
| Length of weighing belt (mm) | 550 |
| Height of conveyor belt (mm) | 780-900 |
| Direction of throughput | From left to right when facing control panel |
| Alarm mode | Audible and visual |
| Reject device | Default: Air pusher Option: Flipper |
| Power | 240V 1 Phase |
| Working environments | Free of obvious vibration and air flow |
Our WeightCheq 10-4000 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
- Specifications
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch
- With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
Parts Description Material of Frame 304 Stainless steel Weighing range (g) 10 – 4000 Minimum scale (g) 0.1 Best accuracy (g) ±1 Max throughput (pcs/min) 90 Width of weighing belt (mm) 300 Length of weighing belt (mm) 550 Height of conveyor belt (mm) 780-900 Direction of throughput From left to right when facing control panel Alarm mode Audible and visual Reject device Default: Air pusher
Option: FlipperPower 240V 1 Phase Working environments Free of obvious vibration and air flow - Ideal Markets
Our WeightCheq 10-4000 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
We’re here to help
Want to see your product run on this machine?
WeightCheQ 0-250
High Accuracy Check Weighing
The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 0 – 250 |
| Best accuracy (g) | ±0.01 |
Features
• Electromagnetic force restoration (EMFR) weigh cell
• Complete stainless steel/aluminum construction
• Heavy-duty frame structure
• Heavy-duty CNC machined foot pads
• High precision load cell
• Modular frame design
• Product accumulation drawer
• Food grade belts
• Anti-static Lexan safety guard
• Rejection system
• No changeover parts required
• Multi-color warning light with buzzer
• No compressed air required
What is EMFR?
Electromagnetic force restoration (EMFR) combines electrical and mechanical components. The design of EMFR weigh cells is based on a balance mechanism. It consists of a position indicator, a controller and an electro-magnetic drive (coil and permanent magnet). In its functionality, the Weigh Cell can be compared to a simple beam balance. If a weight is placed on one side of the beam, the opposite side of the weighing beam attempts to move out of the magnet’s magnetic field. The position indicator detects this deviation and the amount of current required for balancing the beam and ensuring that no position change can occur is transmitted through the coil. As the current is proportional to the weight and can be measured via a resistor, it can be converted into a digital signal which is used for further processing.
Our WeightCheq 0-250 is suited for all industries as your go to high accuracy check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
- Specifications
Parts Description Material of Frame 304 Stainless steel Weighing range (g) 0 – 250 Best accuracy (g) ±0.01 Features
• Electromagnetic force restoration (EMFR) weigh cell
• Complete stainless steel/aluminum construction
• Heavy-duty frame structure
• Heavy-duty CNC machined foot pads
• High precision load cell
• Modular frame design
• Product accumulation drawer
• Food grade belts
• Anti-static Lexan safety guard
• Rejection system
• No changeover parts required
• Multi-color warning light with buzzer
• No compressed air requiredWhat is EMFR?
Electromagnetic force restoration (EMFR) combines electrical and mechanical components. The design of EMFR weigh cells is based on a balance mechanism. It consists of a position indicator, a controller and an electro-magnetic drive (coil and permanent magnet). In its functionality, the Weigh Cell can be compared to a simple beam balance. If a weight is placed on one side of the beam, the opposite side of the weighing beam attempts to move out of the magnet’s magnetic field. The position indicator detects this deviation and the amount of current required for balancing the beam and ensuring that no position change can occur is transmitted through the coil. As the current is proportional to the weight and can be measured via a resistor, it can be converted into a digital signal which is used for further processing.
- Ideal Markets
Our WeightCheq 0-250 is suited for all industries as your go to high accuracy check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
WeightCheQ 3-100
Automatic Check Weighing
The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch• With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 3 – 100 |
| Minimum scale (g) | 0.1 |
| Best accuracy (g) | ±0.2 |
| Max throughput (pcs/min) | 100 |
| Width of weighing belt (mm) | 220 |
| Length of weighing belt (mm) | 450 |
| Height of conveyor belt (mm) | 780-900 |
| Direction of throughput | From left to right when facing control panel |
| Alarm mode | Audible and visual |
| Reject device | Default: Air pusher Option: Flipper |
| Power | 240V 1 Phase |
| Working environments | Free of obvious vibration and air flow |
Our WeightCheq 3-100 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
- Specification
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch• With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
Parts Description Material of Frame 304 Stainless steel Weighing range (g) 3 – 100 Minimum scale (g) 0.1 Best accuracy (g) ±0.2 Max throughput (pcs/min) 100 Width of weighing belt (mm) 220 Length of weighing belt (mm) 450 Height of conveyor belt (mm) 780-900 Direction of throughput From left to right when facing control panel Alarm mode Audible and visual Reject device Default: Air pusher
Option: FlipperPower 240V 1 Phase Working environments Free of obvious vibration and air flow - Ideal Markets
Our WeightCheq 3-100 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
WeightCheQ 10-4000
Automatic Check Weighing
The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch
- With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 10 – 4000 |
| Minimum scale (g) | 0.1 |
| Best accuracy (g) | ±1 |
| Max throughput (pcs/min) | 80 |
| Width of weighing belt (mm) | 300 |
| Length of weighing belt (mm) | 550 |
| Height of conveyor belt (mm) | 780-900 |
| Direction of throughput | From left to right when facing control panel |
| Alarm mode | Audible and visual |
| Reject device | Default: Air pusher Option: Flipper |
| Power | 240V 1 Phase |
| Working environments | Free of obvious vibration and air flow |
Our WeightCheq 10-4000 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
- Specification
Features
- Strain gauge load cell with fast speed response
- Weighing parameter settings with intelligent self-learning function
- Dynamic weight tracking with automatic compensation, improve the stability
- With product presets, easy to edit and switch
- With weighing history query and USB export function
- 304 stainless steel frame, strong and durable
Parts Description Material of Frame 304 Stainless steel Weighing range (g) 10 – 4000 Minimum scale (g) 0.1 Best accuracy (g) ±1 Max throughput (pcs/min) 80 Width of weighing belt (mm) 300 Length of weighing belt (mm) 550 Height of conveyor belt (mm) 780-900 Direction of throughput From left to right when facing control panel Alarm mode Audible and visual Reject device Default: Air pusher
Option: FlipperPower 240V 1 Phase Working environments Free of obvious vibration and air flow - Ideal Markets
Our WeightCheq 10-4000 is suited for all industries as your go to check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit & Vegetable
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
and many more industry applications.
