SLEEK WRAPPER

We offer a wide variety of automatic flow wrapping machines for all budgets, production rates and foot prints.

From our compact and affordable SleekWrapper-40 to the sophisticated F-65, visit any of our showrooms and see our packaging machines in person.

How does a flow wrapper work?

The process starts with a cylindrical roll of film, the vertical bagging machine will transfer film from the roll and thru the forming collar (sometimes referred to as tube or plow). Once transferred thru the collar the film will then fold where upon the vertical seal bars will extend and seal the back of the pouch. Once the desired pouch length is transferred it is filled with product. Once filled the horizontal seal bars will then close, seal and cut the pouch providing a finished product that includes a bag with top/bottom horizontal seals and one vertical back seal.

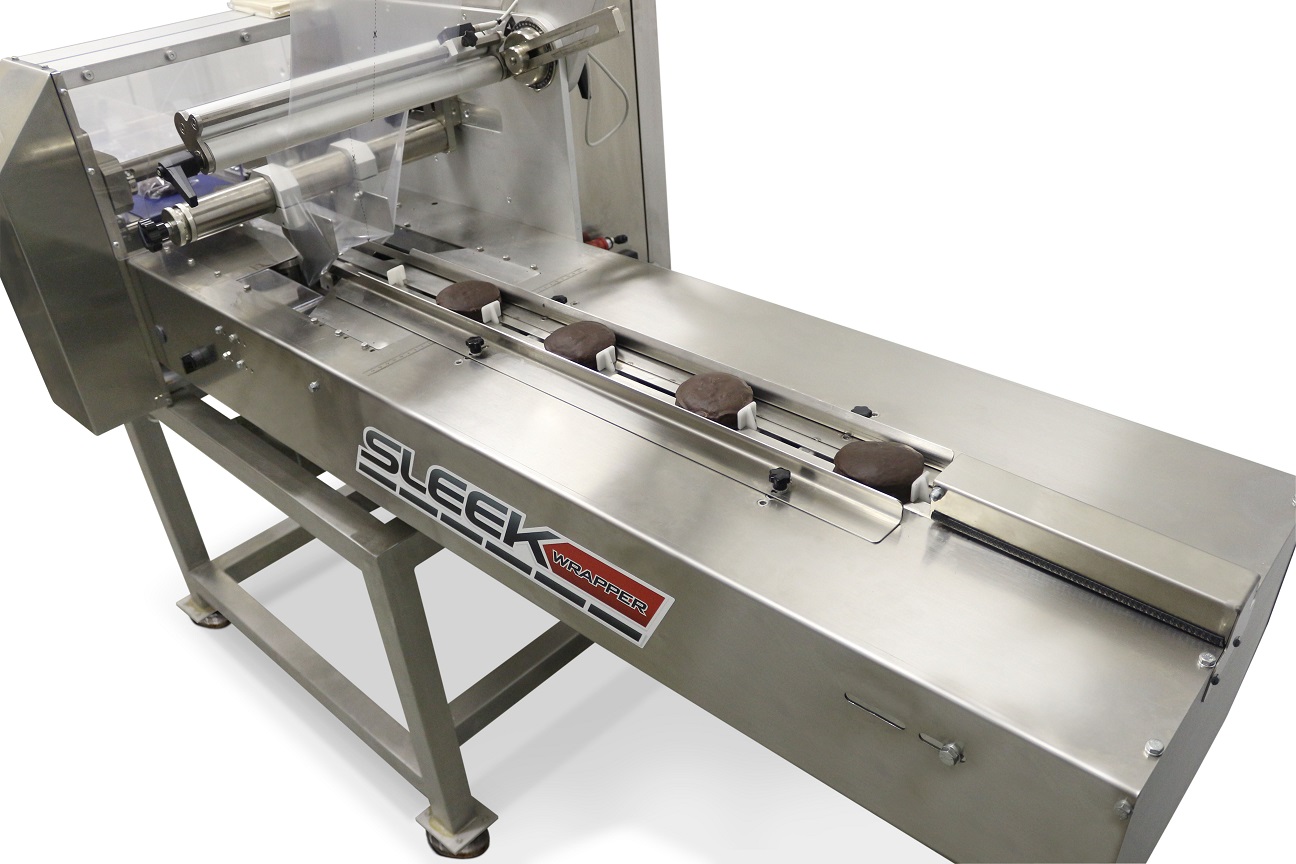

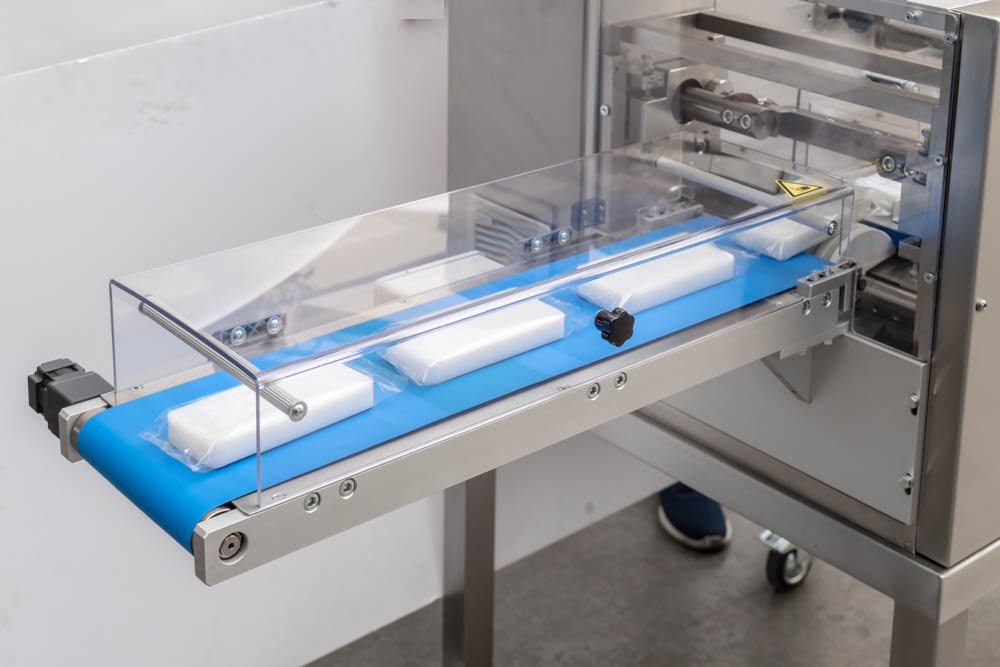

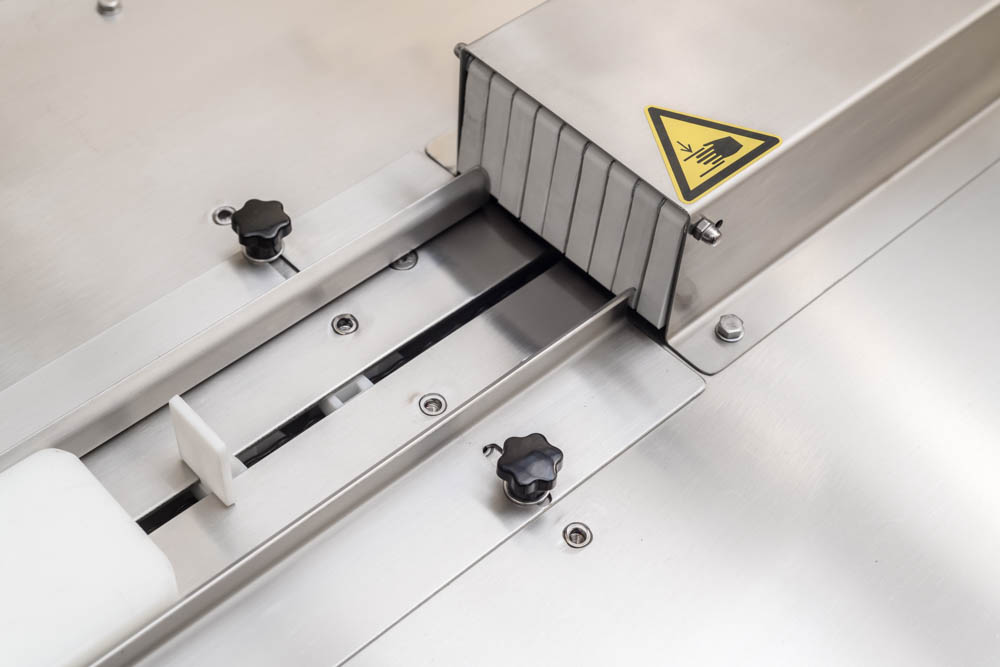

SLEEK 40

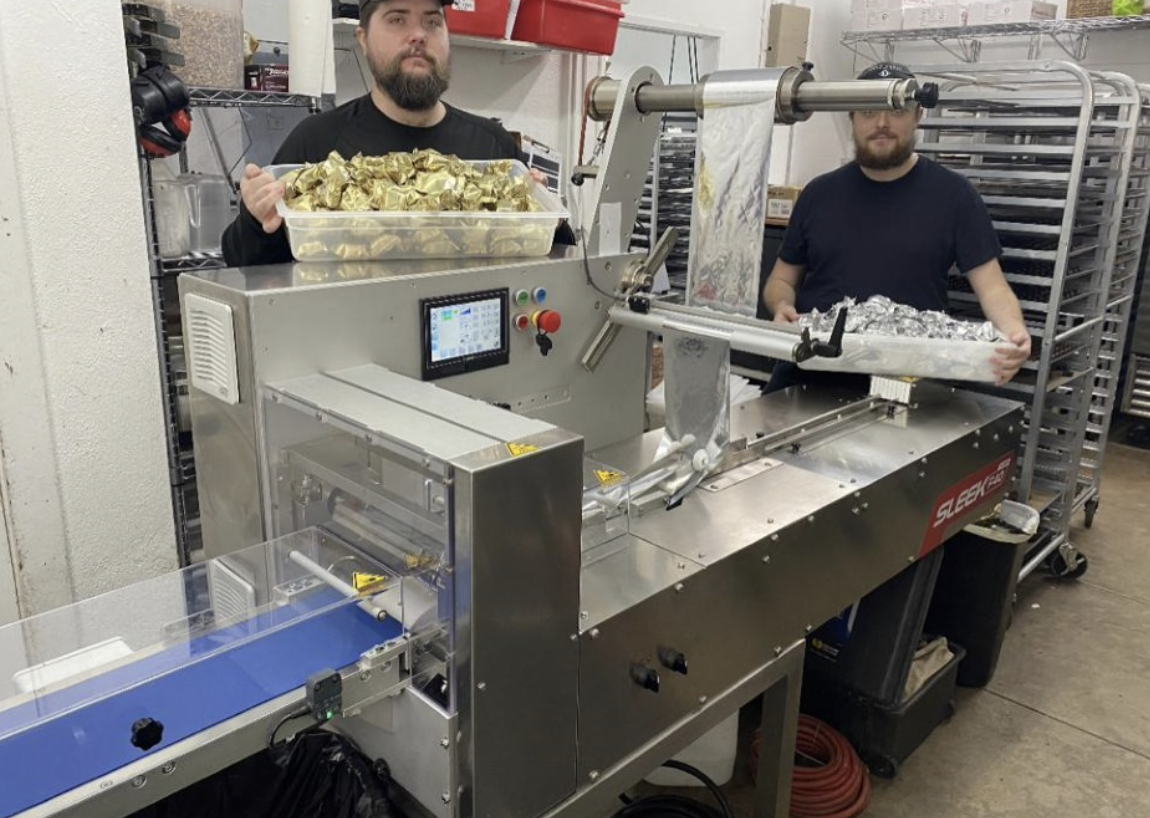

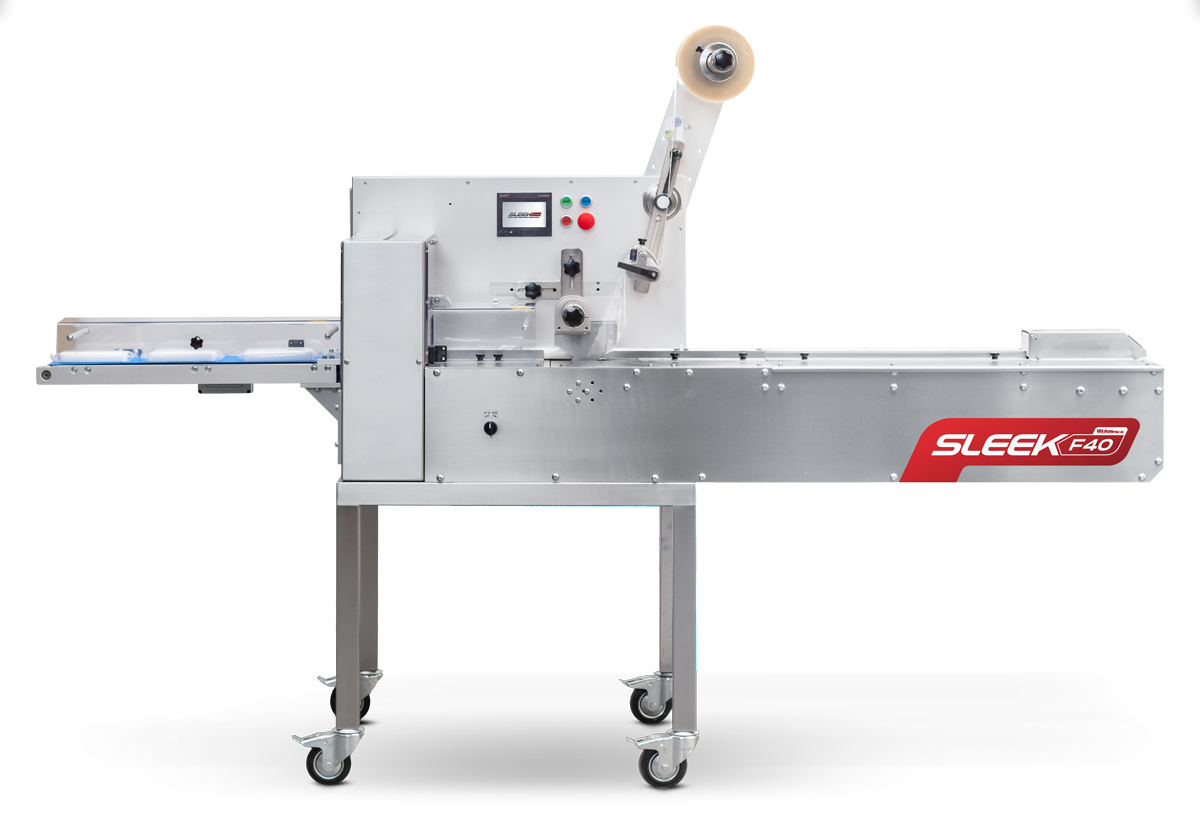

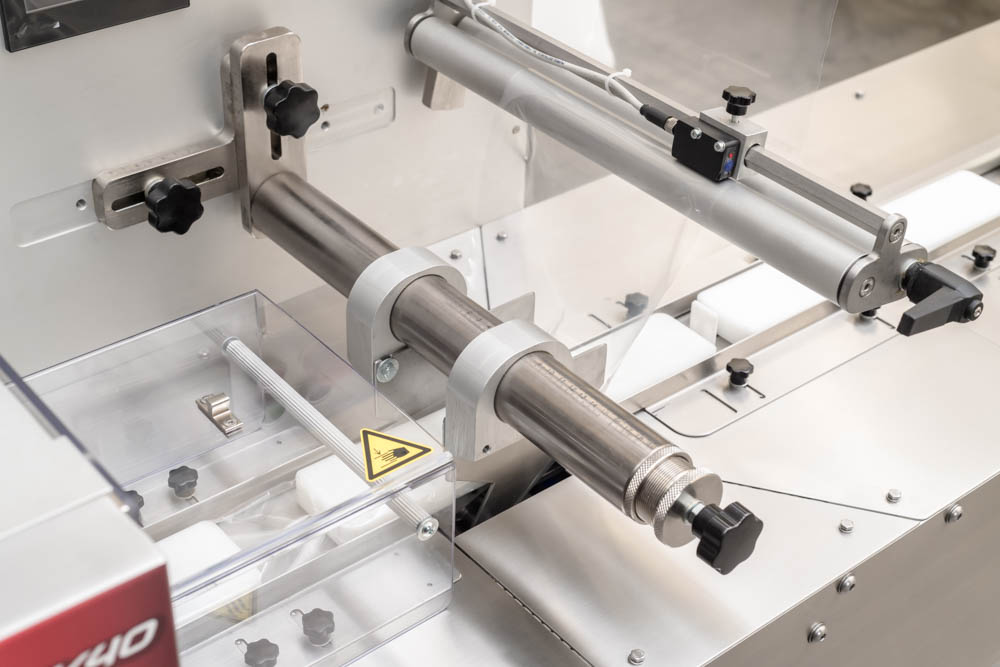

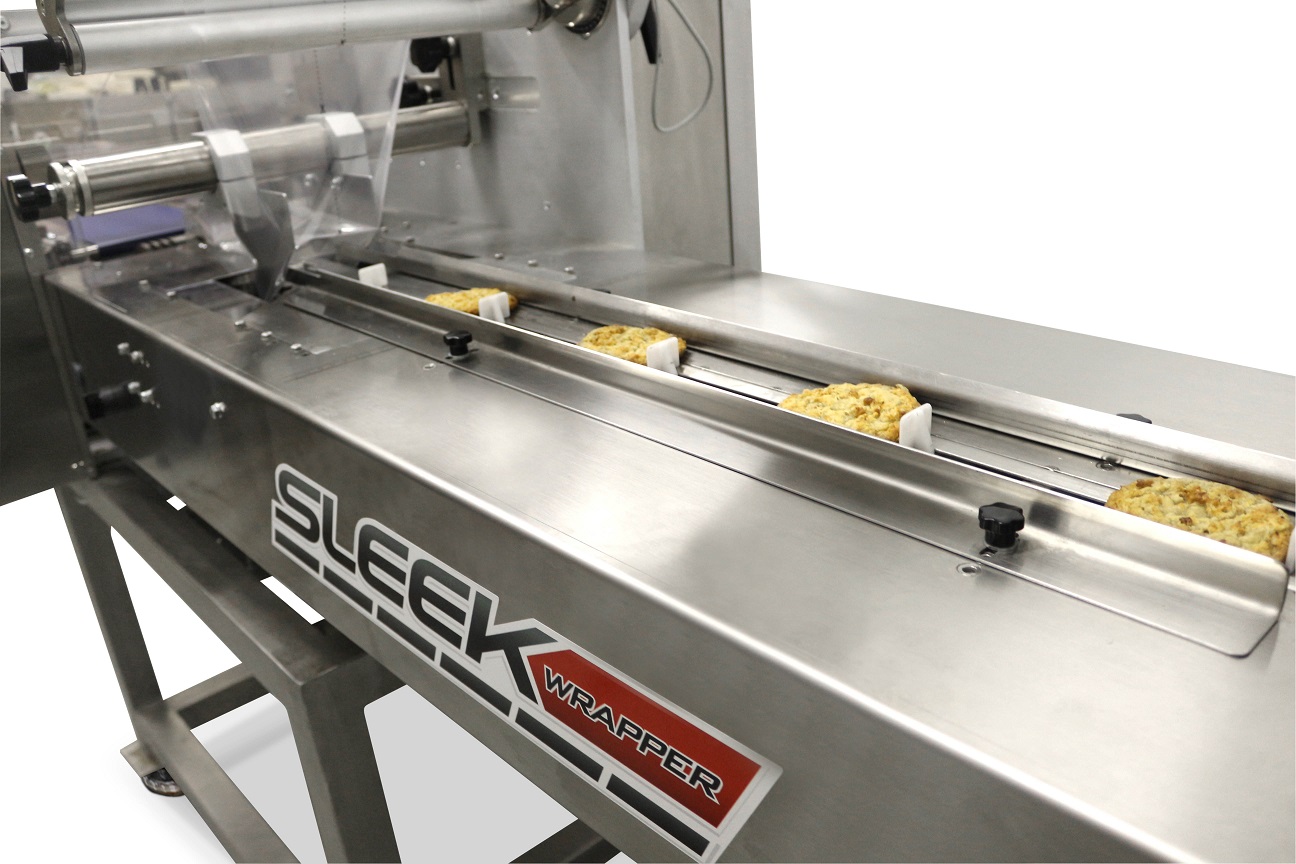

The SleekWrapper 40 servo driven horizontal wrapping machine designed with reliability, simplicity and serviceability to produce up to 100 packages per minute with a maximum web width of 15.5″ or 400mm. The Sleek 40 Wrapper uses 4 servo motors that create quick and easy changeover and adjustment, reduces product and film waste during production and offers low maintenance costs. Servo drives assures precise positioning, smooth acceleration – deceleration.

Standard features include pre-programmed and stored product set up, stainless steel frame construction, user friendly color touch screen HMI, auto open/close rotary fin wheel assembly and rotary seal jaws with jam detecting logic.

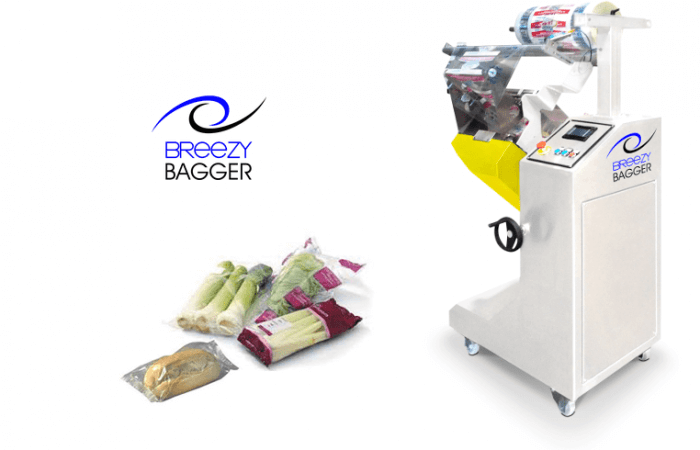

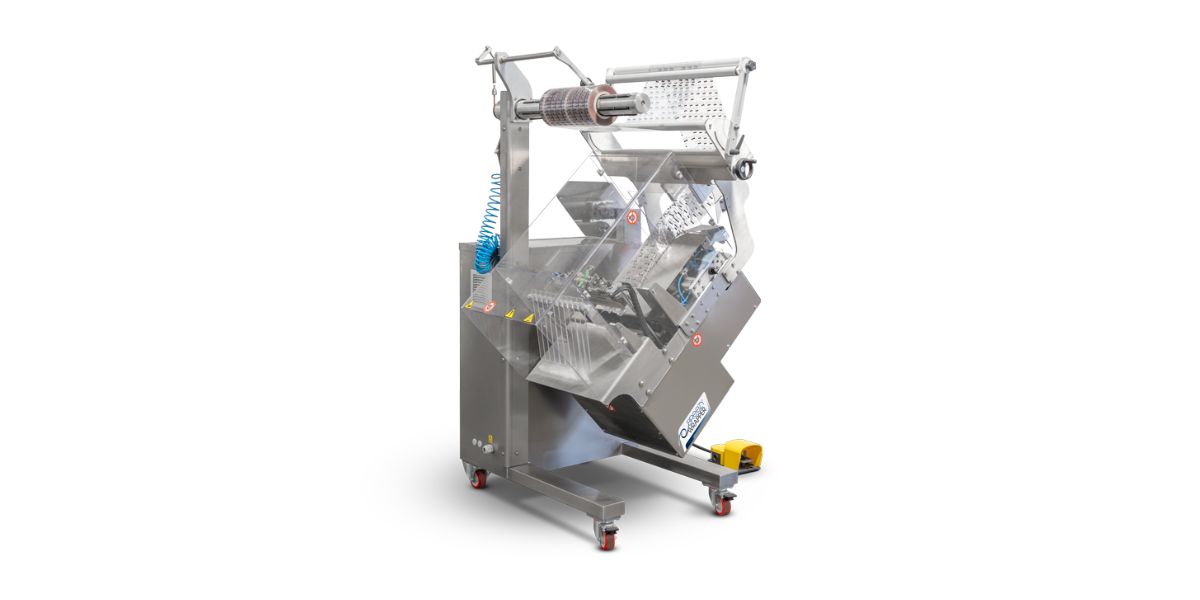

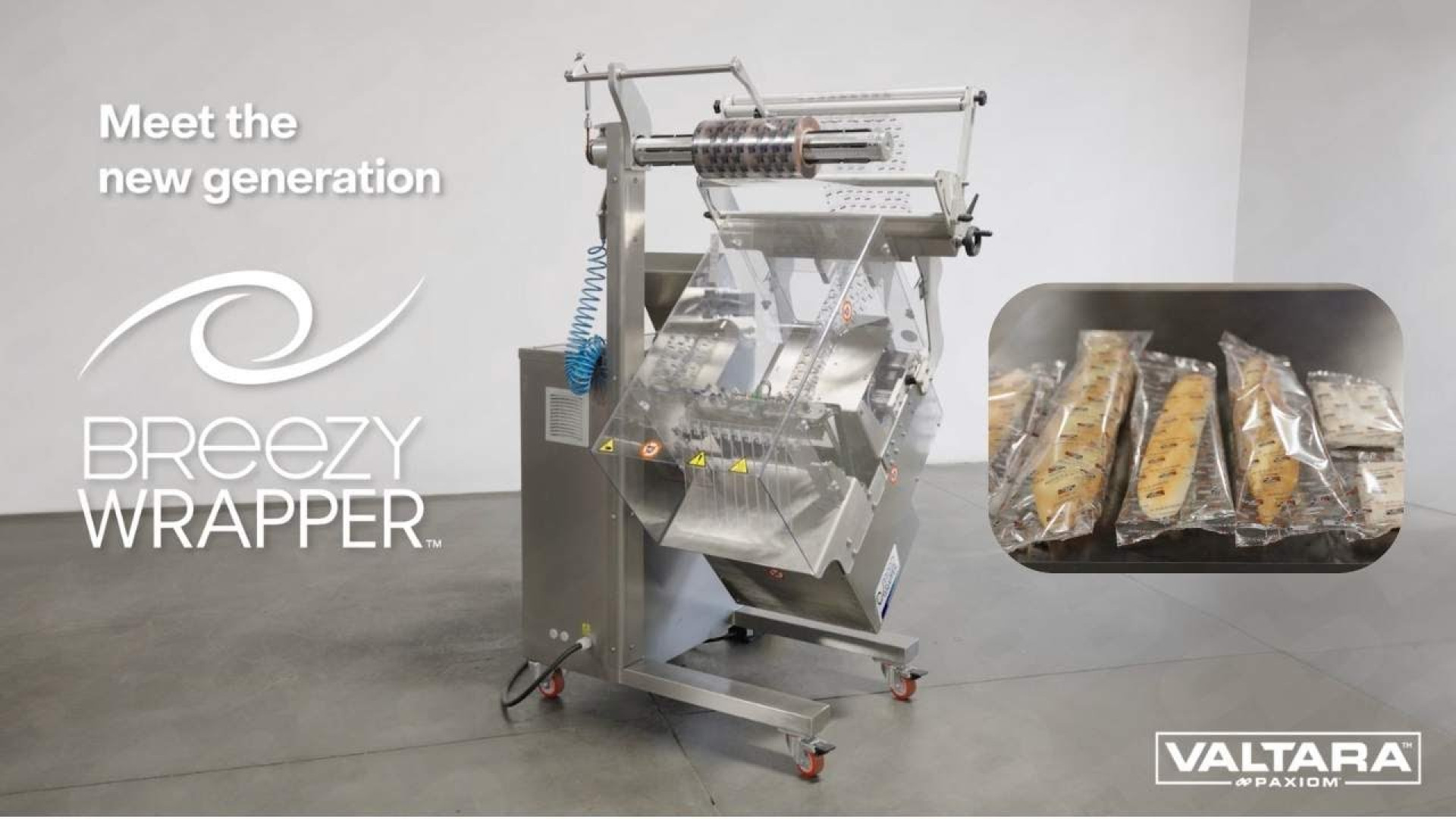

BREEZY

The Breezy Bagger is specifically designed to combine horizontal flow wrapping and vertical bagging in one compact machine. With no comparison to anything on the market to date, The Breezy offers extreme versatility with its unique pivoting feature that can be used for many applications:

In the vertical position perfect for automatic bagging and product loading.
In the horizontal position for products requiring over wrapping including trays and containers.

Included is a unique length detection sensor and operational logic that adjusts to the length of product each cycle and makes the bag according to the length of product. The benefit to the user is cost saving on materials on products that vary in length as well as random filling of product where bulk density changes. This compact automatic bagging machine will immediately provide a return on investment as it will increase productivity, reduce product giveaway and provide more consistency than manual hand labor. The Breezy is perfect for institutional packaging, school meal kits, home delivery meal kits as well as packaging fruits, vegetables, snack foods, baked foods, home goods, hardware and more.

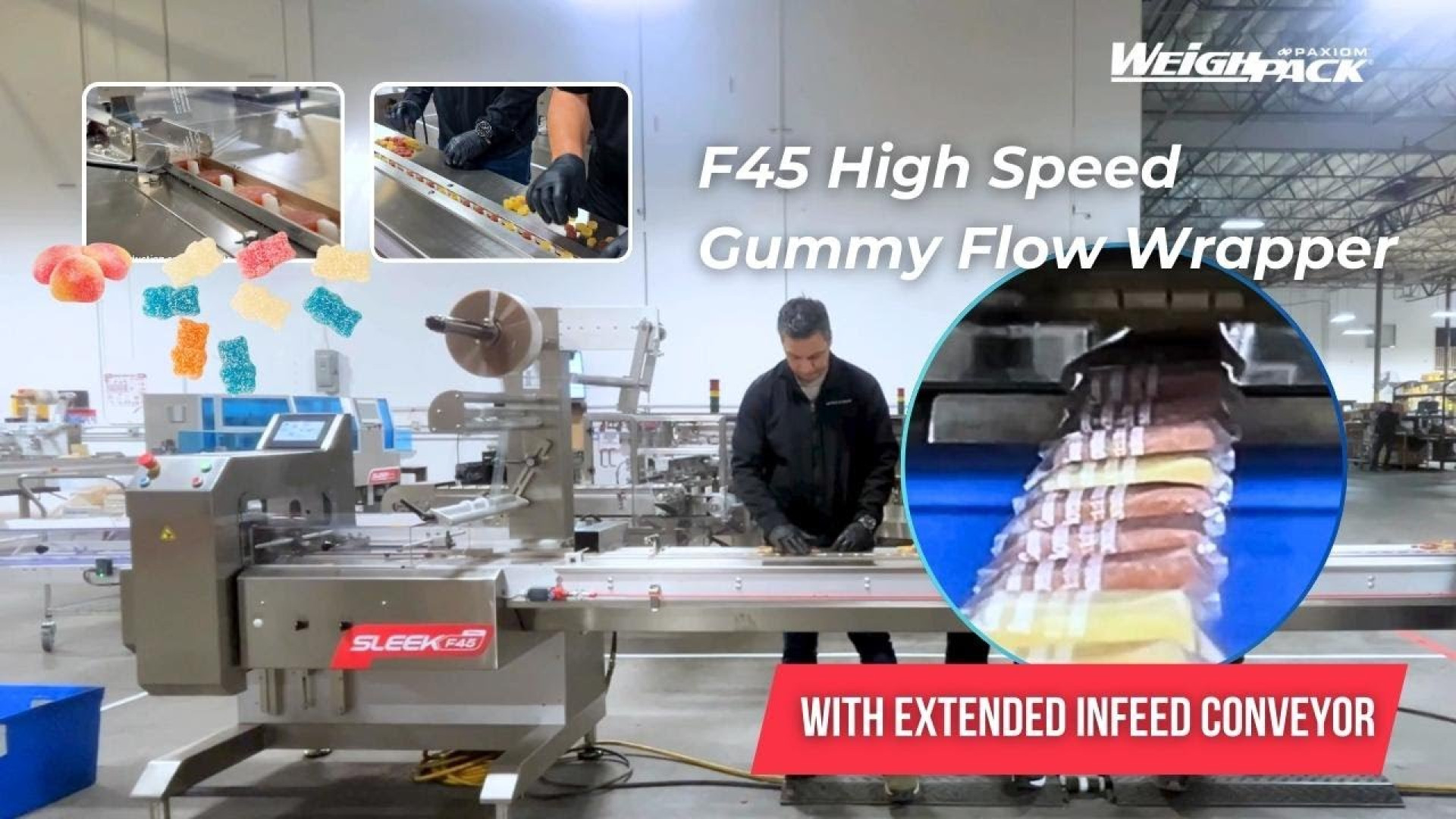

SLEEK 45

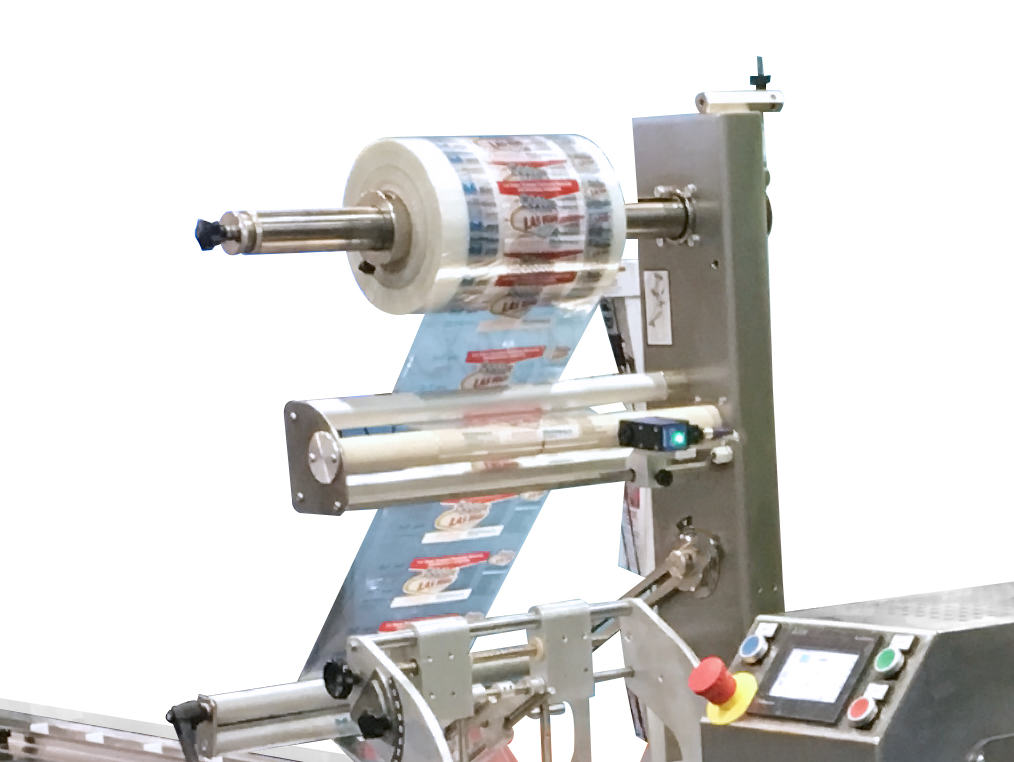

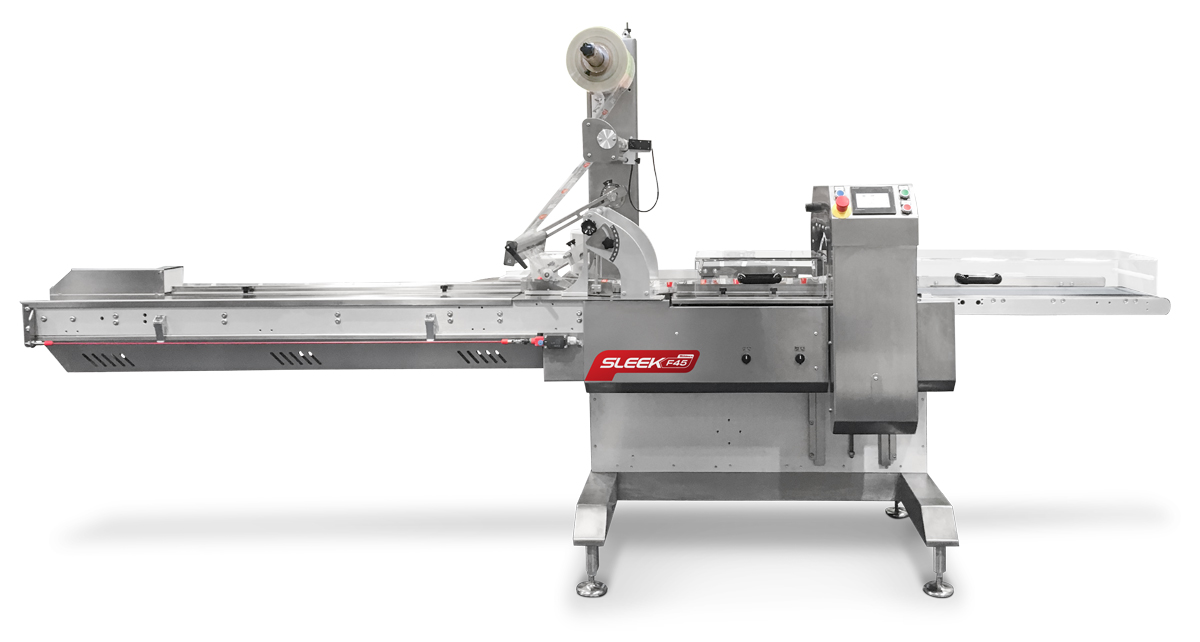

The high speed SleekWrapper 45 servo driven horizontal wrapping machine is designed with reliability, simplicity and serviceability to produce rates from 20 to 400 packages per minute (subject to jaw configuration and product size) with a maximum web width of 450mm.

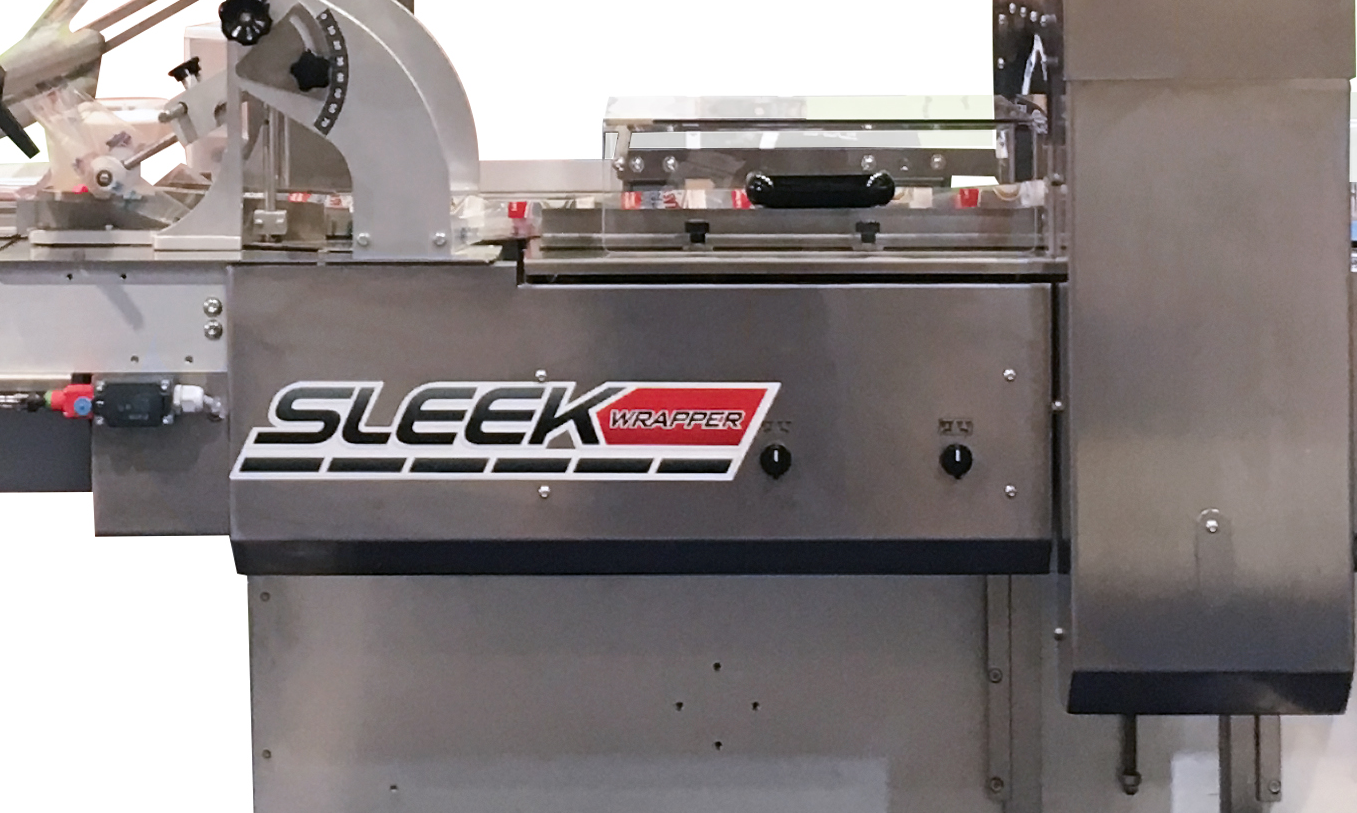

The Sleek 45 Wrapper uses multiple servo motors that create quick and easy changeover and adjustment, reduces product and film waste during production and offers low maintenance costs. Servo drives assures precise positioning, smooth acceleration – deceleration. Standard features include pre-programmed and stored product set up, stainless steel frame construction, user friendly color touch screen HMI, auto open/close rotary fin wheel assembly and rotary seal jaws with jam detecting logic.

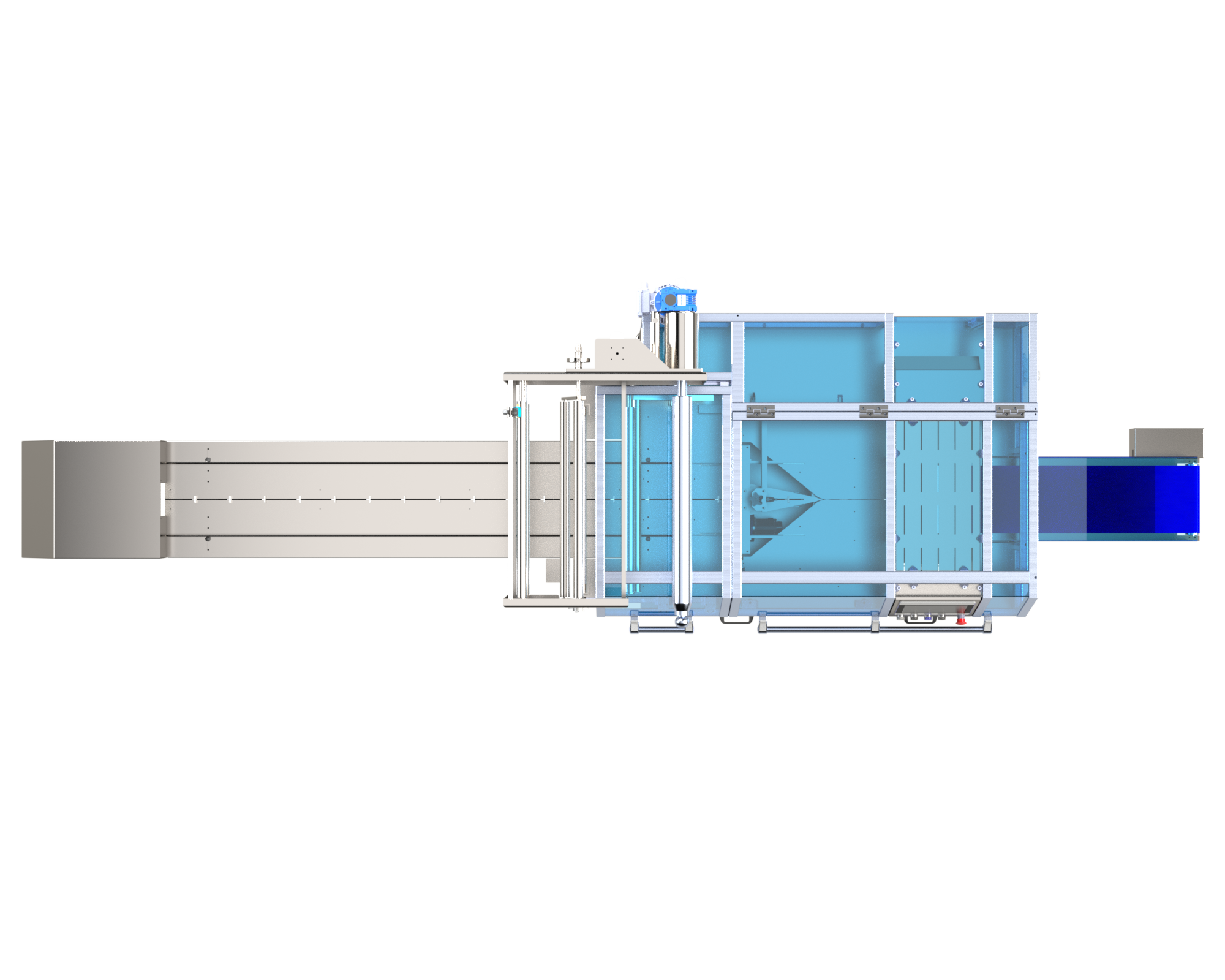

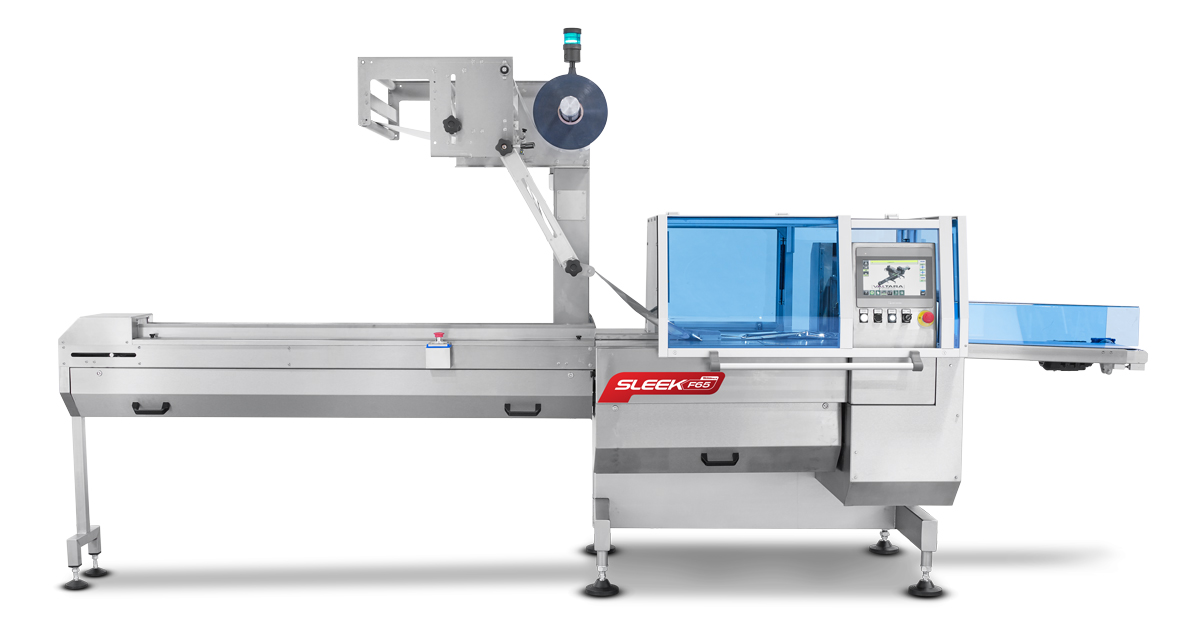

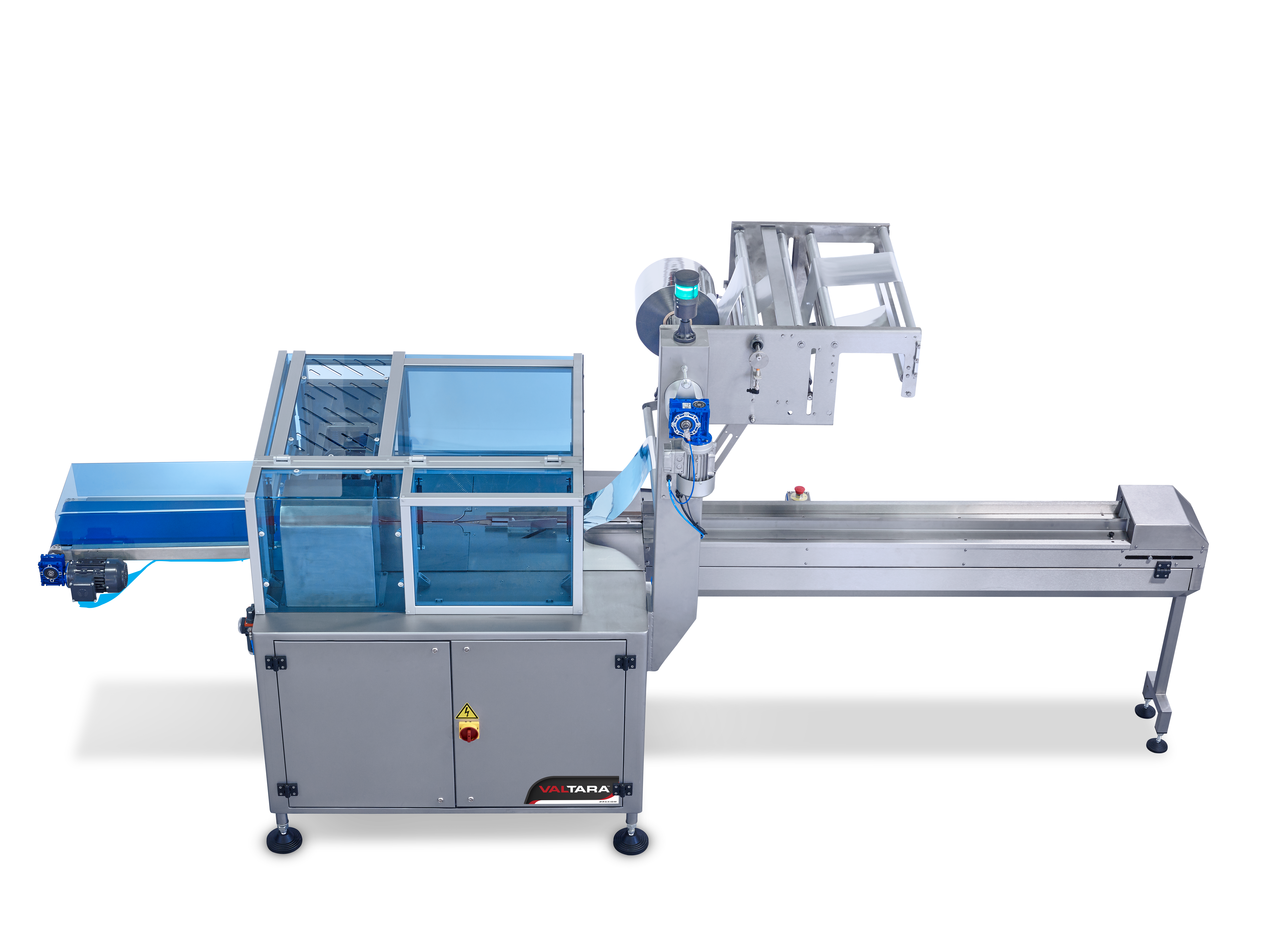

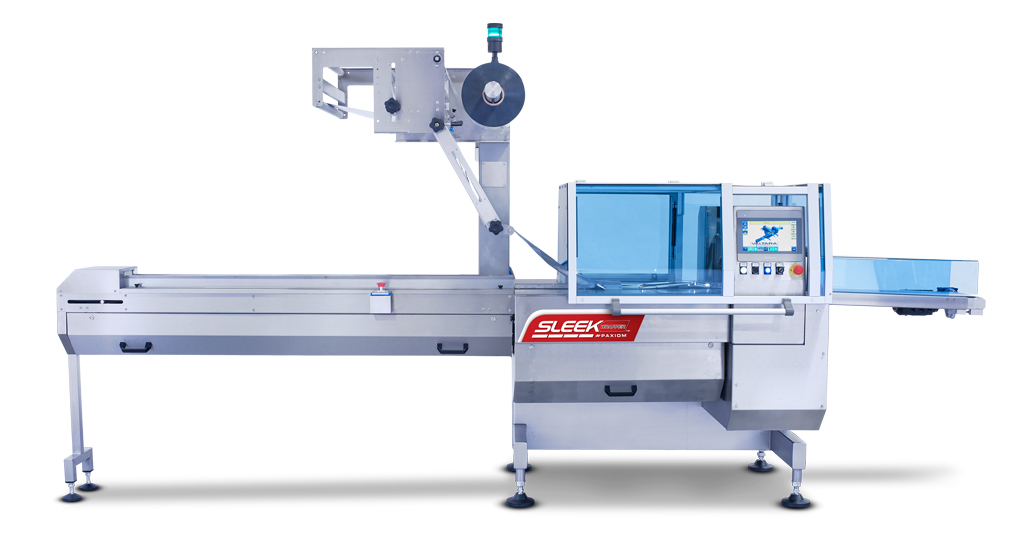

SLEEK F65

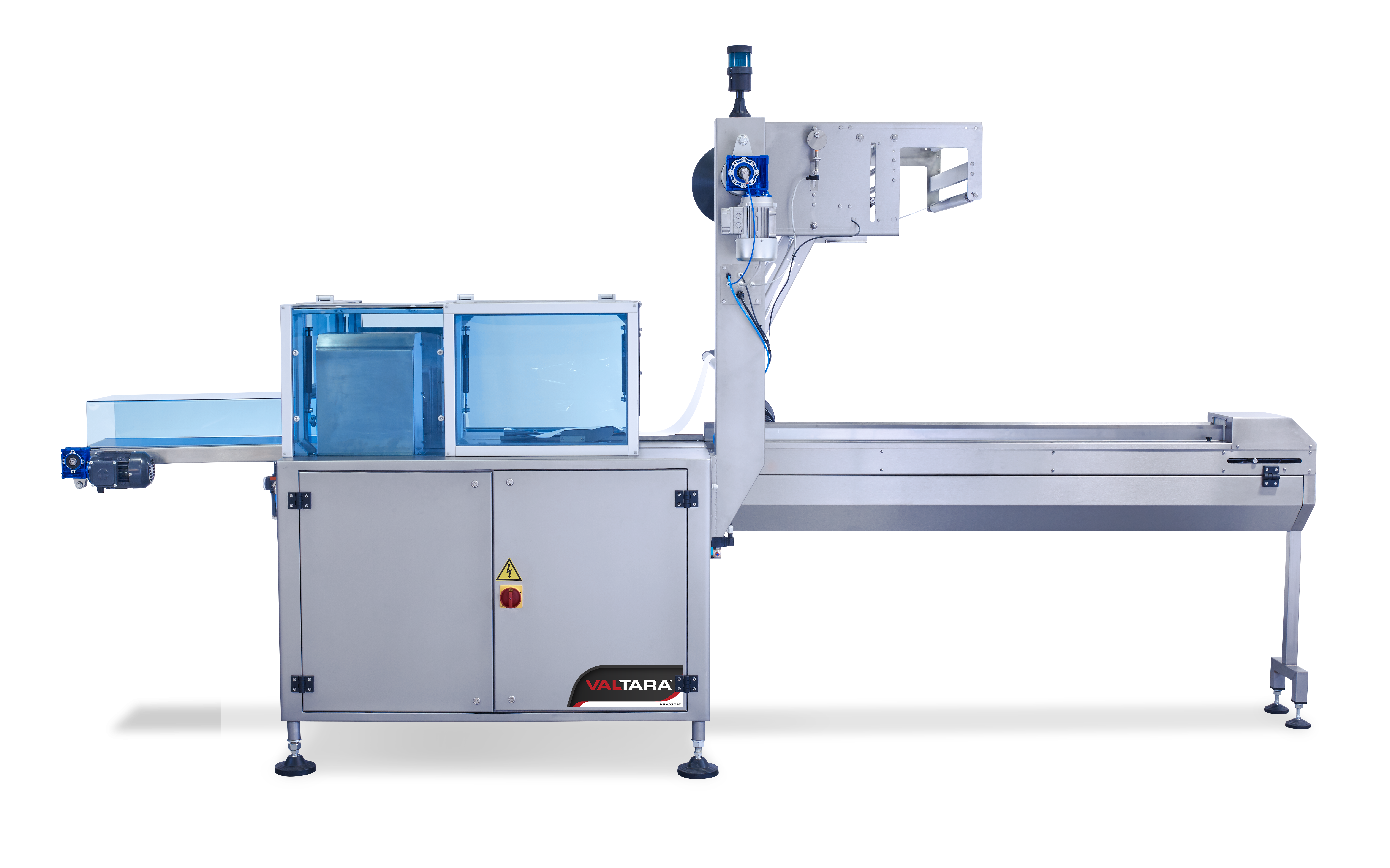

The heavy duty SleekWrapper 65 servo driven horizontal wrapping machine is designed with reliability, simplicity and serviceability to produce from 10 up to 200 packages per minute (subject to jaw configuration and product size) with a large maximum web width of 25.6″ or 650mm, built for 24/7 environment.

The Sleek 65 Wrapper uses 5 servo motors that create quick and easy changeover and adjustment, reduces product and film waste during production and offers low maintenance costs. Servo drives assures precise positioning, smooth acceleration – deceleration. Standard features include pre-programmed and stored product set up, stainless steel frame construction, user friendly color touch screen HMI, auto open/close rotary fin wheel assembly and rotary seal jaws with jam detecting logic.

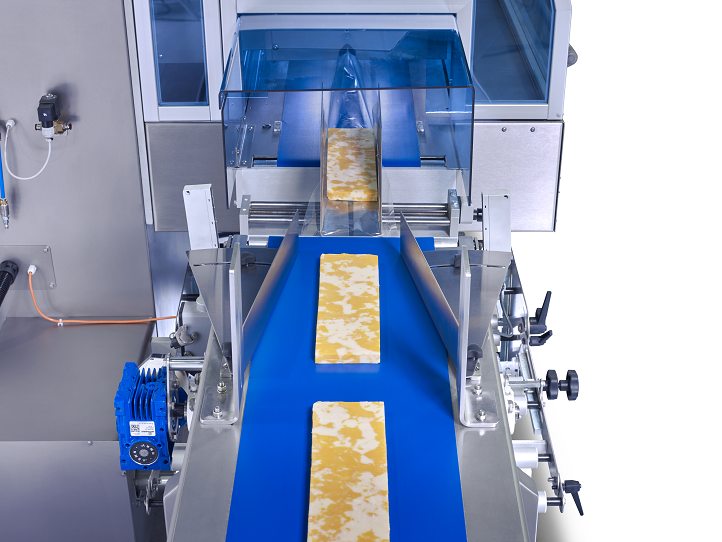

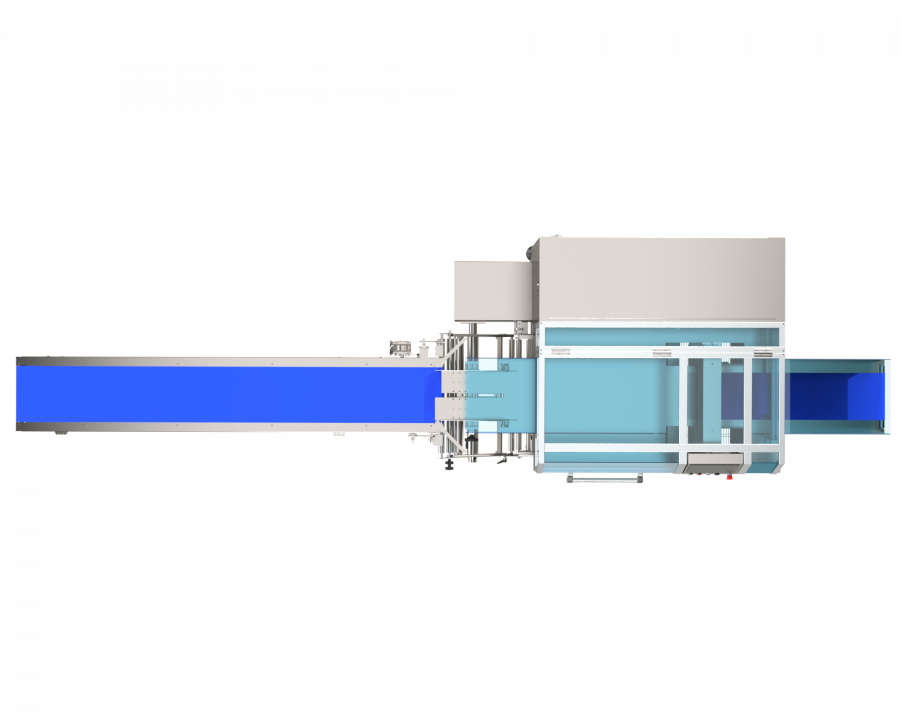

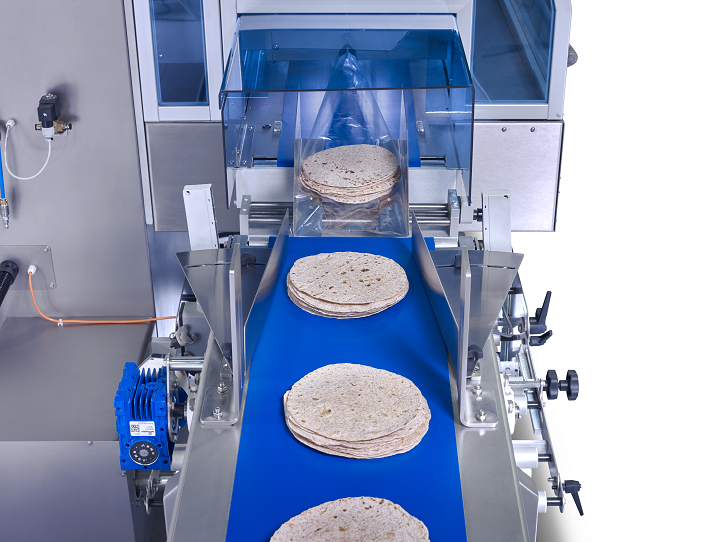

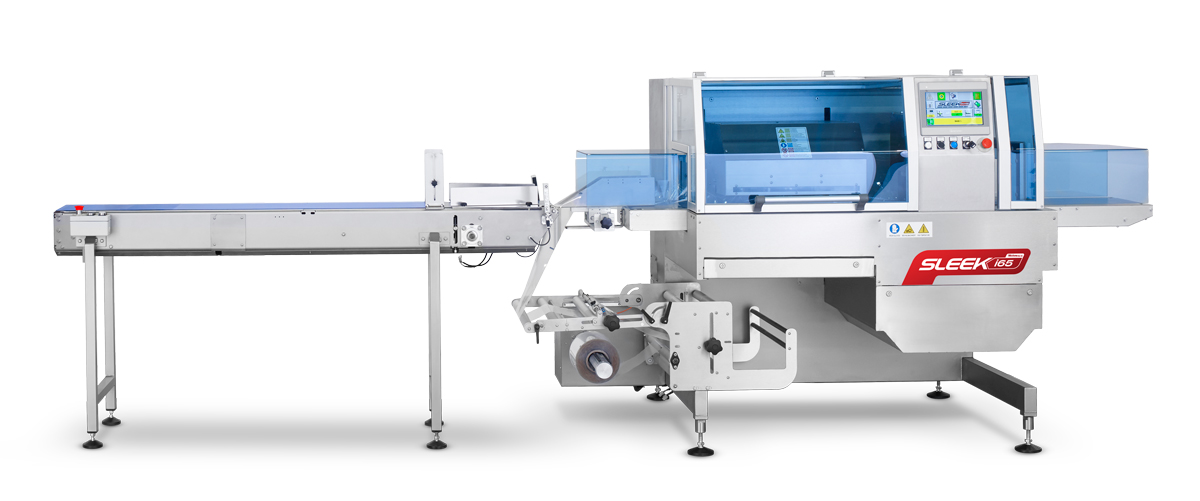

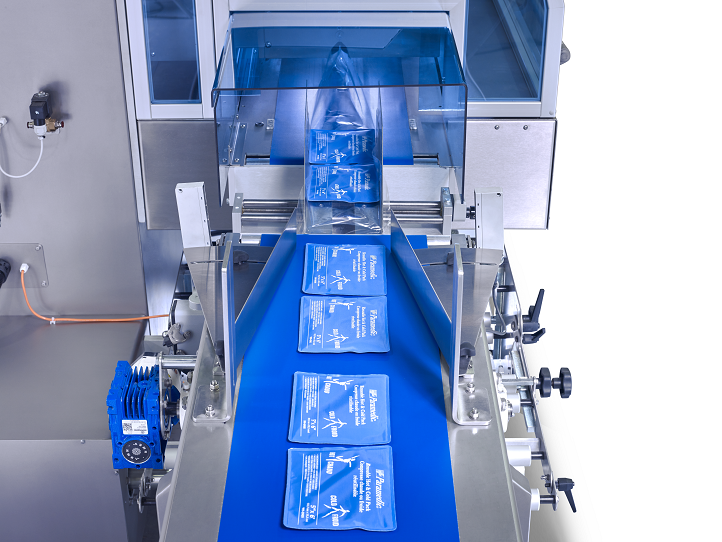

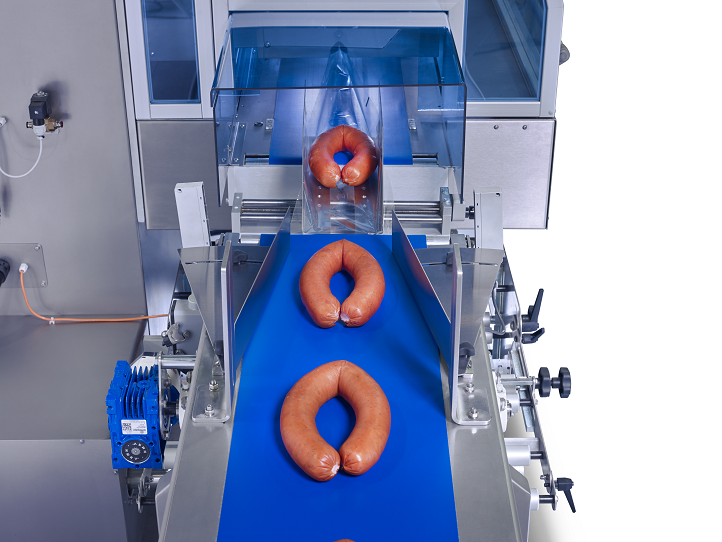

SLEEK I-65 INVERTED

The high performance SleekWrapper Inverted servo driven horizontal wrapping machine designed with reliability, simplicity and serviceability to produce up to 150 packages per minute with a maximum web width of 19.6” or 500mm, built for 24/7 environment.

The Sleek Inverted Wrapper uses 5 servo motors that create quick and easy changeover and adjustment, reduces product and film waste during production and offers low maintenance costs. Servo drives assures precise positioning, smooth acceleration – deceleration. Ideal for soft or sticky products, multipacks, and other products that are difficult to push with the lug chain design found on conventional bottom seal flow wrappers. The film is fed from below the product. Hard to handle products are securely carried on top of the packaging film from the former through the cutting head.

Standard features include pre-programmed and stored product set up, stainless steel frame construction, user friendly color touch screen HMI, auto open/close rotary fin wheel assembly and rotary seal jaws with jam detecting logic.

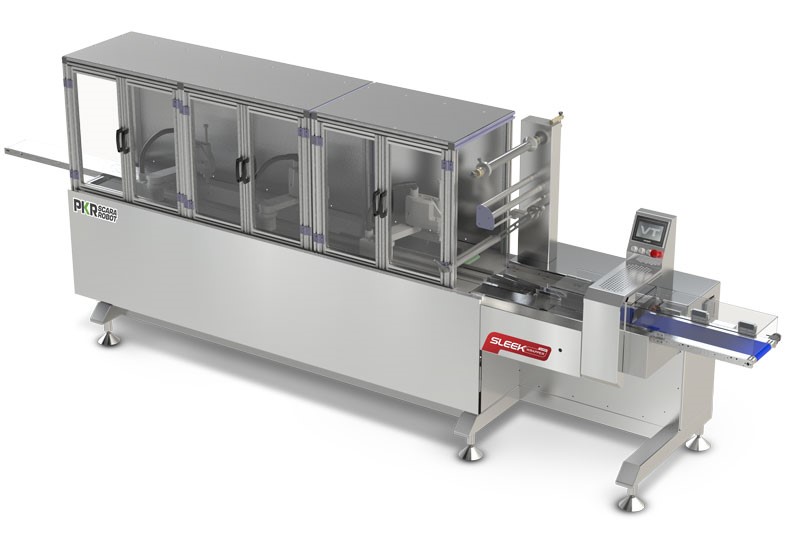

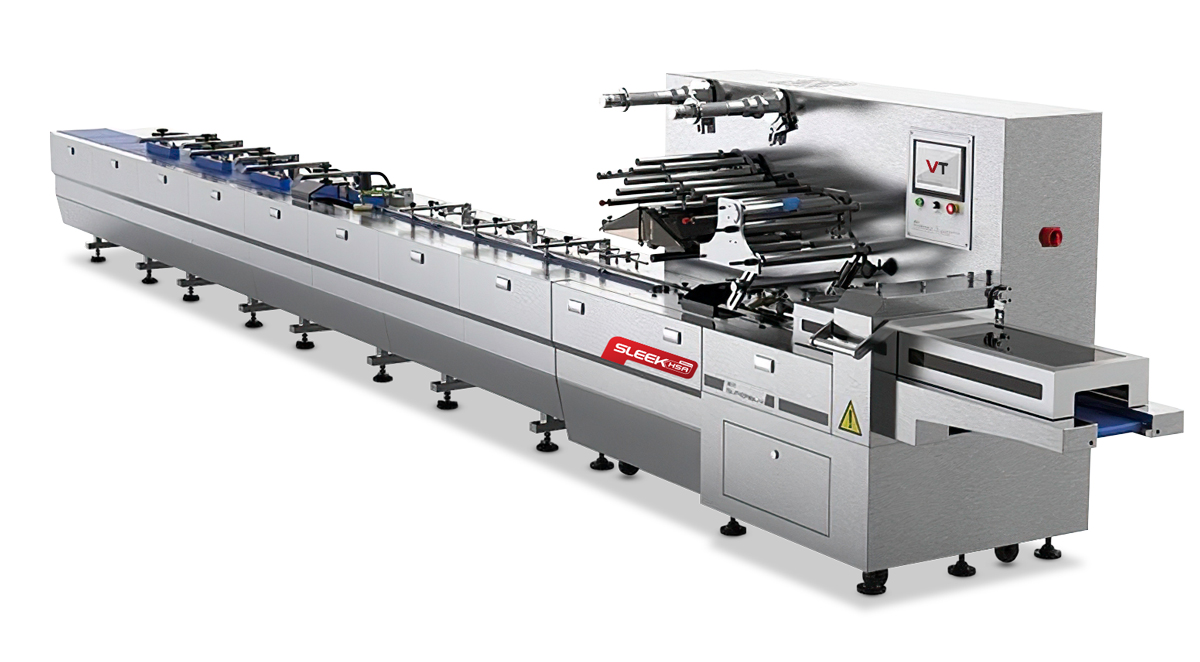

AUTOMATIC LOADING & PRODUCT ALIGNMENT

Our portfolio of automatic flow wrapping solutions include the capabilities of seamless loading from upstream processing conveyors as well as product alignment prior to wrapping.

We offer a diverse range of solutions for a range of products, sizes and production rates.

All models are servo driven, manufactured in stainless steel and engineered to your project specifications.

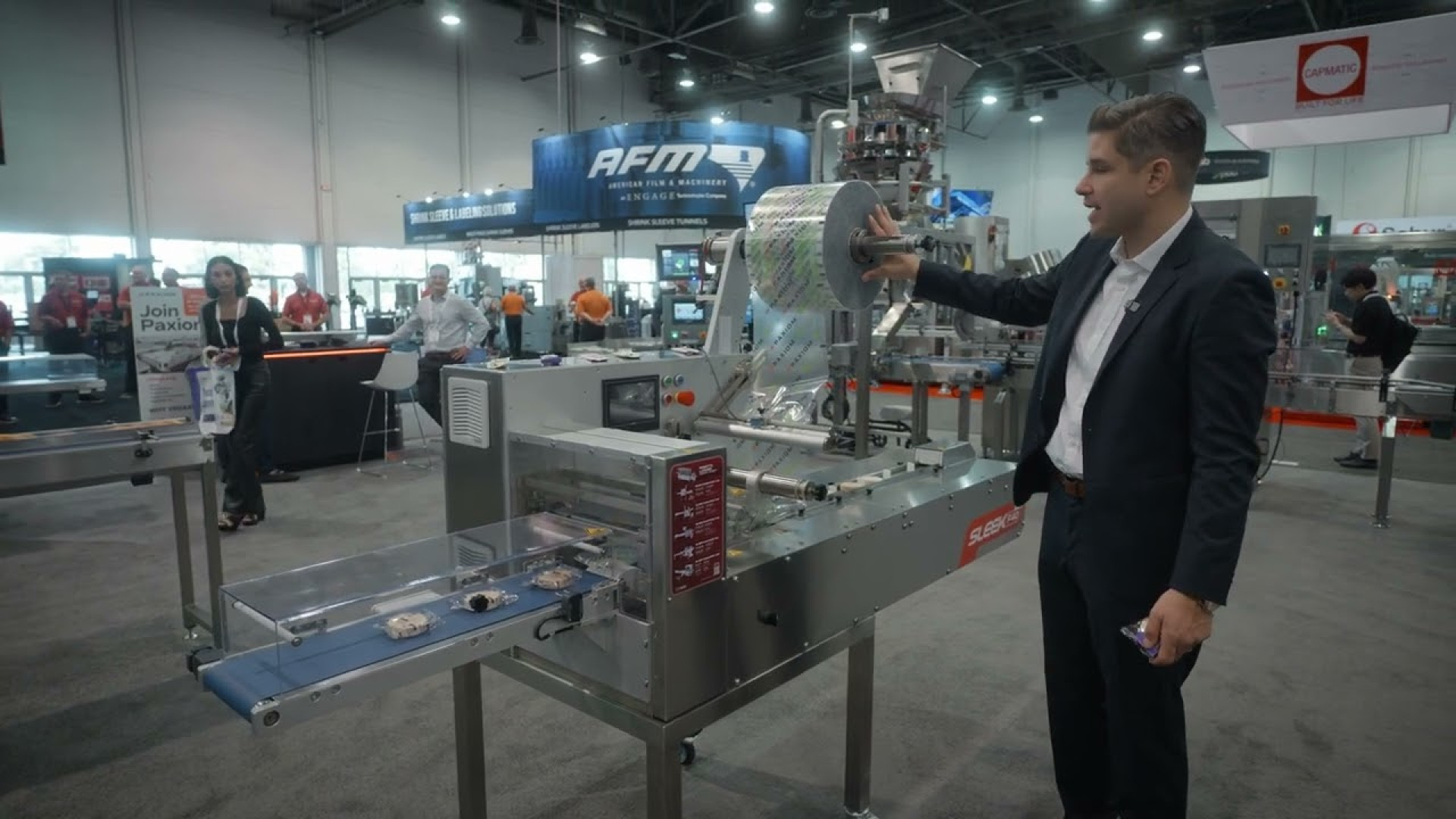

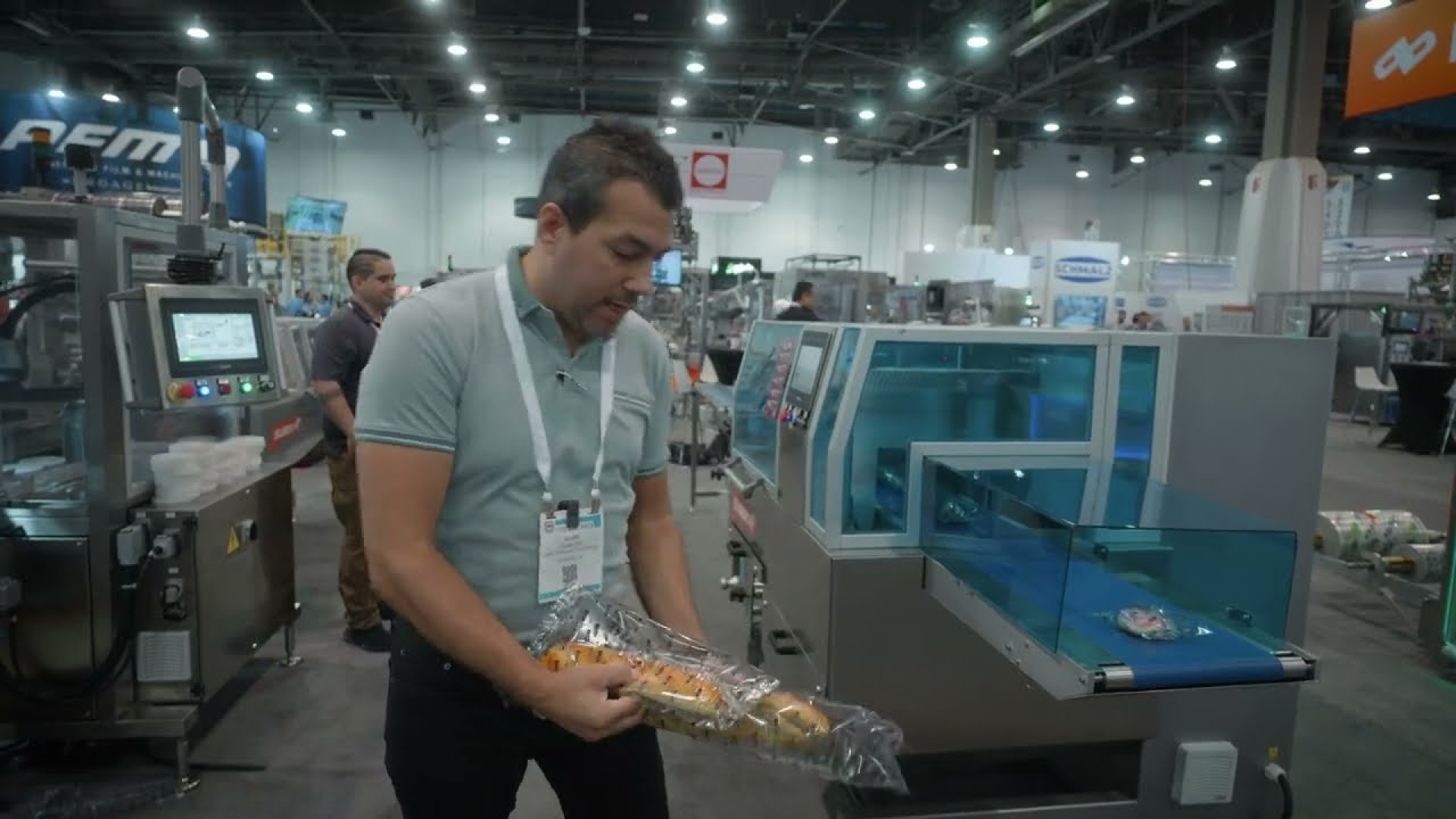

Video Gallery
